Ultimate Chemical Inertness & High Purity (Pure PTFE Body): The valve body is constructed completely from premium PTFE, capable of withstanding prolonged exposure to almost all known corrosive media—including aqua regia, hydrofluoric acid, strong alkalis, and solvents. The material itself is highly inert, preventing any trace particulate leaching and ensuring zero secondary contamination of ultra-pure fluids.

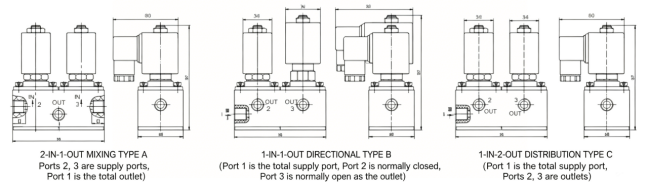

Multi-Functional Fluid Circuits (3-Way Architecture): The sophisticated 2/3-way architecture can be deployed as a mixing valve, diverting valve, or commutating switch depending on the engineering requirements. It seamlessly replaces combinations of multiple single-direction valves, significantly simplifying the design of complex micro-circulation networks.
Instantaneous Zero-Pressure Switching: Driven by a highly refined direct-acting switching mechanism, the valve actuates flawlessly even under absolute zero line pressure (0 bar), such as in gravity-fed flows or micro-peristaltic pump networks. It achieves millisecond-level response times and cross-port airtight seals upon coil energization.
Dual Coil High-Efficiency Actuation: The dual-coil arrangement generates powerful electromagnetic holding and shifting force while providing highly reliable positional alignment. The coils are electrically optimized for low power consumption and minimal heat dissipation, ensuring stable operation during continuous high-frequency cycling and expanding the overall valve lifespan.
Micro-Bore Design & Compact Integration: The DN5 nominal diameter coupled with high-precision threaded ports ensures an ultra-compact, lightweight envelope. It is ideal for integration within confined analytical instrument enclosures, dense control cabinets, or multi-station manifold blocks.
