UPVC Electric Modulating Ball Valve

Model：Q941F-10S
Specification：DN15~300
Temperature：-15~60℃
Medium：Water, steam, oil, nitric acids, acetic acids

Pressure：PN10
Connection method：Flange, Wafer, Thread
Driving method：Electric
Material：UPVC

Consult now

Add QR code to serve you!

UPVC Electric Modulating Ball ValveOverview

UPVC electric regulating ball valve is an industrial automation execution unit consisting of a high-performance intelligent electric actuator and a UPVC (Unplasticized Polyvinyl Chloride) ball valve body. By receiving standard 4-20mA DC analog signals or switch signals from control systems, the actuator provides rotational torque to drive the ball within a 0-90 degree range. This enables real-time adjustment of the flow area for continuous proportional regulation of process parameters such as flow rate, pressure, and temperature. Due to the exceptional acid, alkali, and corrosion resistance of UPVC, this series is specifically designed for chemical dosing, industrial water treatment, electroplating, and general corrosive fluid networks, offering an economical anti-corrosion alternative to expensive stainless steel or alloy valves.

Product Image of UPVC Electric Modulating Ball Valve

UPVC Electric Modulating Ball ValveCharacteristic

1. Superior chemical corrosion resistance:The main body is made of UPVC, which resists erosion from most acids, alkalis, salt solutions, and organic solvents. Its chemical stability exceeds common metals, making it ideal for long-term operation in humid, salt spray, and highly polluted environments.
2.Lightweight and compact structure:The low density of UPVC results in an overall weight approximately 1/3 that of metal valves of the same specification. This lightweight design significantly reduces mechanical loads on plastic piping systems and facilitates easy installation and maintenance.
3.High-precision proportional regulation:Equipped with an intelligent electronic actuator featuring a built-in servo feedback module. High resolution and a minimal dead zone allow for precise execution of minute signal compensations, ensuring stable process parameters.
4.Low flow resistance and self-cleaning:The smooth ball flow path provides a minimal resistance coefficient when fully open. The medium flows smoothly, and the natural wiping action during ball rotation prevents viscous media from accumulating or adhering to internal surfaces.
5.Intelligent integrated control:The highly integrated actuator supports non-intrusive field settings and self-diagnosis. Features include overload protection, stall alarms, and fail-safe logic (lock-up or reset upon signal loss) for seamless integration with BAS or PLC systems.
6.Excellent shut-off sealing performance:Utilizes high-precision balls and quality PTFE seats. Within the rated differential pressure range, it provides reliable sealing, achieving bubble-tight shut-off in the closed position, compliant with ANSI Class VI standards.
7.Intrinsic energy saving and low cost:UPVC production is energy-efficient and recyclable. The overall manufacturing and maintenance costs offer significant advantages over metal valves, providing a cost-effective solution for pipeline automation.
8.Modular maintenance design:The actuator-to-body interface complies with international standards. Key components such as seals, bearings, and actuator drive modules are designed for modular disassembly, greatly improving on-site maintenance efficiency and reducing downtime.

UPVC Electric Modulating Ball Valvestructure principle

Structural Drawing of UPVC Electric Modulating Ball Valve

List of Component Names and Materials

Part Name	Material
Valve Body, Bonnet	WCB	304 (CF8)	316 (CF8M)	316L (CF3M)
Ball	2Cr13 + Nitriding	304	316	316L
Stem	2Cr13	304	316	316L
Seat Sealing Ring	PTFE, Carbon Fiber + PTFE, PPL
Packing	V-type PTFE, Flexible Graphite

UPVC Electric Modulating Ball Valvetechnology parameter

Performance Specification Sheet

Performance Specification Sheet
Nominal Pressure	1.0	MPa
Strength test pressure	1.5
Sealing test pressure	1.1
Applicable Temperature	-15-60	℃

UPVC Electric Modulating Ball Valvestandard size

Standard requirements for external dimensions

1. The structural length of the valve shall comply with the standard of GB/T12221

2. Connecting flanges according to GB/T17241.6 standard

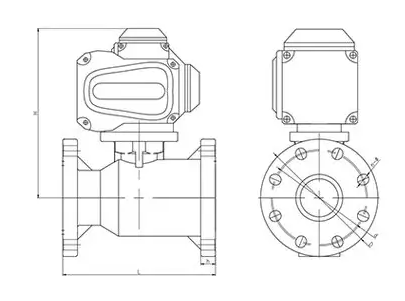

Outline Drawing of UPVC Electric Modulating Ball Valve

Outline dimension table

Nominal Diameter DN (mm)	Outer Diameter D	Bolt Circle d (GB)	Bolt Circle d (JIS)	Bolt Circle d (ANSI)	Length L	Height H	Thickness h	No. of Holes n (GB)	No. of Holes n (JIS)	No. of Holes n (ANSI)	Hole Dia. Φ (GB)	Hole Dia. Φ (JIS)	Hole Dia. Φ (ANSI)
15 (1/2")	95	65	70	2.38	120	200	15	4	4	4	14	15	16
20 (3/4")	105	75	75	2.76	120	200	16	4	4	4	14	15	16
25 (1")	120	85	90	3.13	130	205	16	4	4	4	14	19	16
32 (1 1/4")	135	100	100	3.45	145	215	18	4	4	4	18	19	16
40 (1 1/2")	145	110	105	3.88	168	225	20	4	4	4	18	19	16
50 (2")	160	125	120	4.74	180	230	20	4	4	4	18	19	19
65 (2-1/2")	180	145	140	5.49	225	235	22	4	4	4	18	19	19
80 (3")	195	160	150	6	260	250	25	8	4	4	18	19	19
100 (4")	215	180	175	7.5	280	265	25	8	8	8	18	19	19
125 (5")	245	210	210	8.5	350	310	30	8	8	8	18	23	22
150 (6")	280	240	240	9.51	400	315	30	8	8	8	22	23	22
200 (8")	335	295	290	11.75	400	320	35	8	12	8	22	23	22
250 (10")	406	350	355	14.25	450	340	38	12	12	12	22	25	25
300 (12")	483	400	400	17	450	340	38	12	16	12	22	25	25
