floating ball valve

Floating ball valve is one of the most widely used types of ball valves. Its core feature is that the sphere is in a "floating" state inside the valve chamber, and is only radially positioned through the upper and lower valve stems. Under the action of medium pressure, the sphere can produce small displacement and tightly press the sealing ring at the outlet end, thus achieving one-way sealing. The floating ball valve has a simple and compact structure, mainly composed of a valve body, a floating ball body, a valve seat (sealing ring), a valve stem, and a driving device. Its working principle is to operate the handle or actuator to drive the valve stem to rotate the ball 90 °, and use the opening or closing of the ball's through-hole to control the flow channel. The main advantages of the internal thread floating ball valve, external thread welded pipe floating ball valve, forged steel floating ball valve, flange floating ball valve, electric floating ball valve, pneumatic floating ball valve, turbine floating ball valve, clamp floating ball valve, insulation floating ball valve and other floating ball valves produced by Kaiweixi Valve include simple structure, small volume, light weight, low manufacturing cost, and low fluid resistance. It is usually suitable for medium and small caliber (DN ≤ 200mm) and medium and low pressure (such as Class 150/300) working conditions, and is widely used for cutting off water, oil, gas, and general corrosive media. It is an important basic switch valve in the fields of petroleum, chemical, urban water supply and drainage.

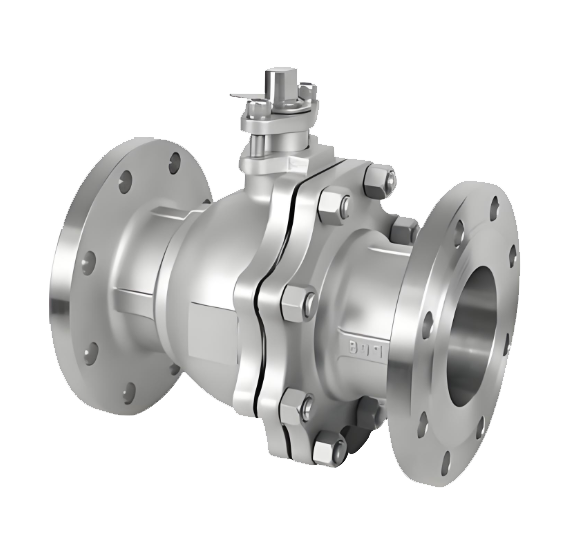

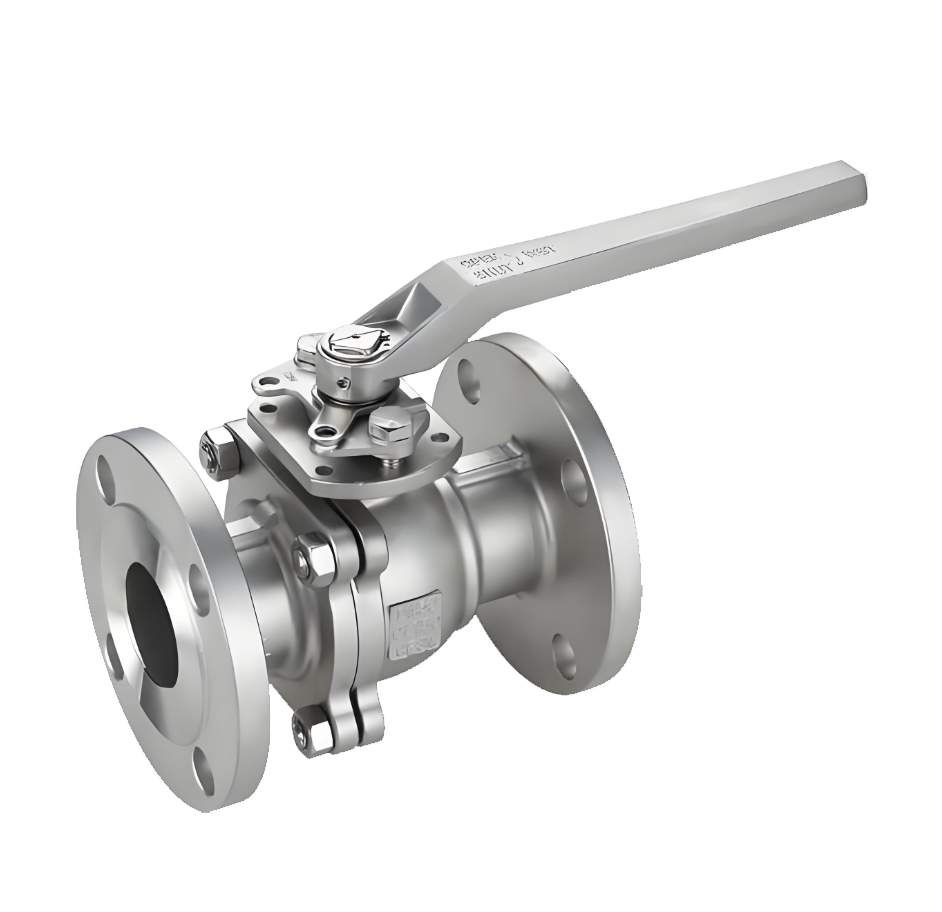

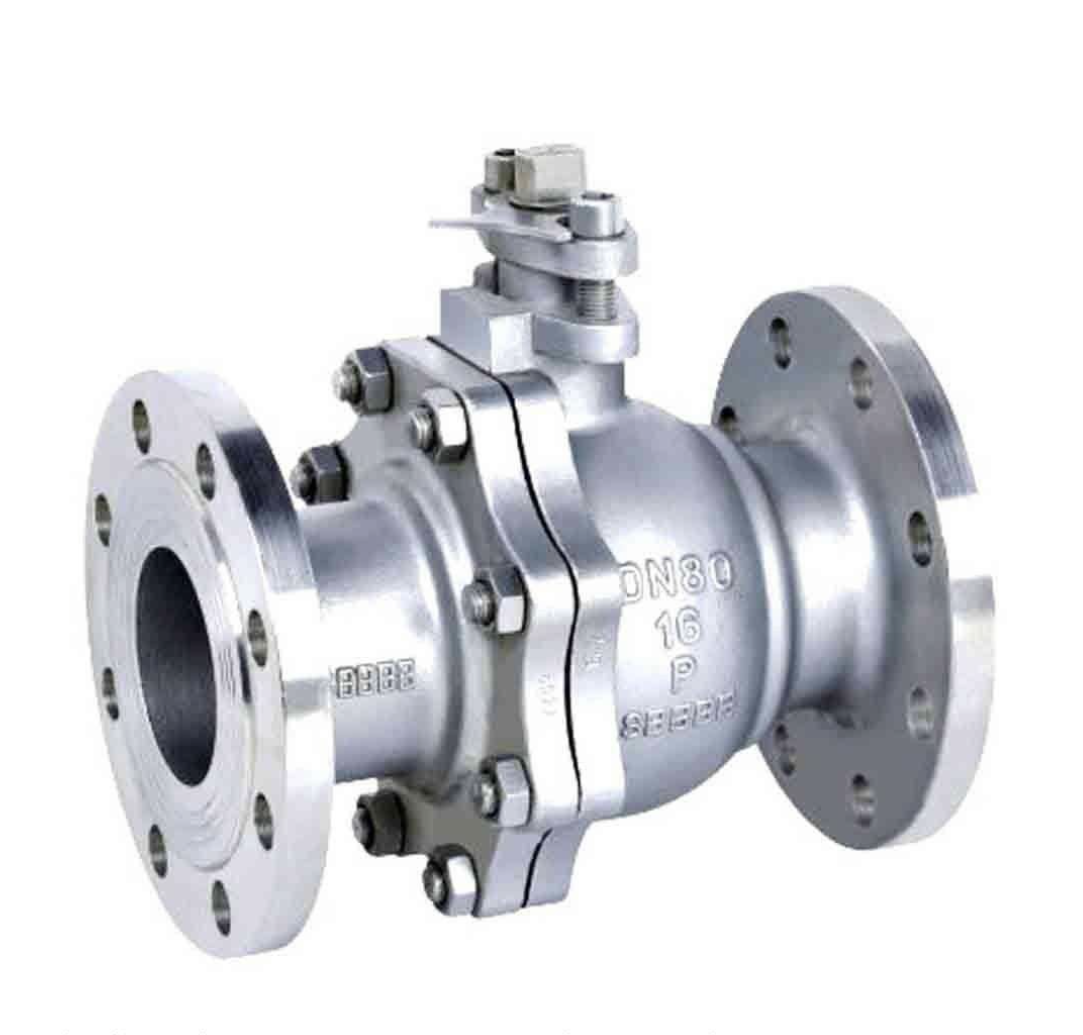

Q41F Flange Ball Valve

Model：
Q41F-16P/Q41F-25P/Q41F-40P/Q41F-64P/Q41F-16C/Q41F-25C
Specification：
PN16,PN25,PN40,PN64
Pressure：
PN16,PN25,PN40,PN64
Material：
Carbon steel, stainless steel, alloy steel,Bronze

Q41F Flange Ball Valve OverviewQ41F flange ball valve is a universal shut-off valve connected by flanges, which uses a ball to rotate 90 degrees to achieve rapid opening and closing. The valve body is usually made of cast steel, stainless steel or brass, with a full bore or reduced diameter design to ensure low fluid resistance. Its sealing pair often uses soft materials such as polytetrafluoroethylene (PTFE) to form a tight fit with the sphere, achieving reliable sealing. This valve has a wide working pressure range and is suitable for water, steam, oil, gas, and general corrosive media. It is widely used in industrial pipelines such as petroleum, chemical, power, water supply and drainage, and heating as a control device for fluid connection or disconnection.Q41F Flange Ball Valve Product Image

View detail>>
Q41Y 3PCS Forged Steel Ball Valve

Model：
Q41Y-16C/Q41Y-40C/Q41Y-64P/Q41Y-100P/Q41Y-16P/Q41Y-40P
Specification：
DN15-DN200
Pressure：
PN16,PN40,PN100，PN64
Material：
forged steel, forged stainless steel

Q41Y 3PCS Forged Steel Ball Valve OverviewQ41Y three piece forged steel ball valve is a high-pressure resistant ball valve composed of a forged steel valve body and three bolted connections. The valve body and components are usually made of forged steel materials such as A105, F304/F316, which obtain a dense structure through forging processes and have higher mechanical strength and pressure bearing capacity. The core seal adopts a three-dimensional hard sealing structure with spherical surface welding or spraying hard alloy (such as Stellite alloy), and the valve seat is made of metal or reinforced graphite, which can maintain sealing stability under high temperature, high pressure and frequent operation. This valve is designed to comply with high standard specifications such as API and ASME, with a nominal pressure of up to Class 1500. It is widely used in key pipelines such as petrochemicals, oil and gas extraction, power plants, and refining, and is suitable for reliable cutoff of harsh working conditions such as water, steam, oil products, and natural gas.Q41Y 3PCS Forged Steel Ball Valve Product Image

View detail>>

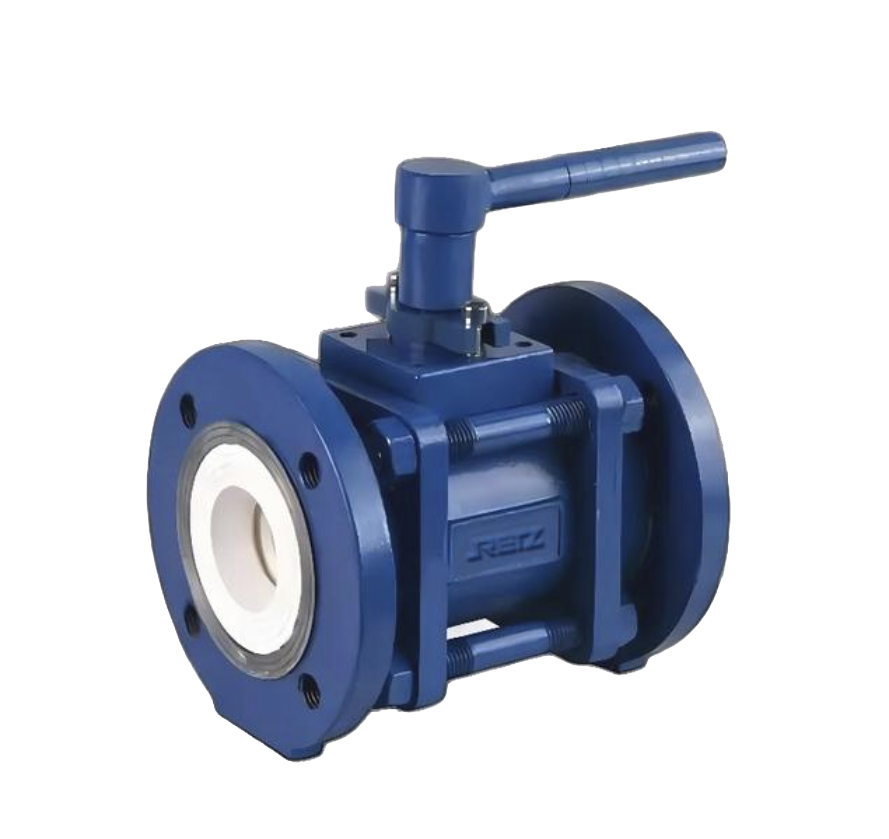

Q41TC Ceramic Ball Valve

Model：
Q41TC-10C/Q41TC-16C/Q41TC-10P/Q41TC-16P/Q41TC-10R/Q41TC-16R
Specification：
DN15-DN200
Pressure：
PN10,PN16
Material：
Cast steel + ceramic,Stainless steel + ceramic

Q41TC Ceramic Ball Valve OverviewQ41TC ceramic ball valve is a wear-resistant and corrosion-resistant ball valve that uses special engineering ceramics as the key component material. The flow surface of its sphere, valve seat, and valve body cavity is usually made of high-performance ceramic materials such as alumina, zirconia, or silicon carbide, which have extremely high hardness and chemical inertness. The valve adopts flange connection and fixed ball or floating ball structure, which can be opened and closed by rotating the ball 90 degrees. It is designed to cope with extremely harsh working conditions. Suitable for industries such as thermal power generation, mining and metallurgy, chemical industry, coal chemical industry, and sewage treatment, it can effectively control slurries containing hard particles and fibers or strongly corrosive and highly abrasive media, providing reliable sealing and cutting functions with long service life.Q41TC Ceramic Ball Valve Product Image

View detail>>

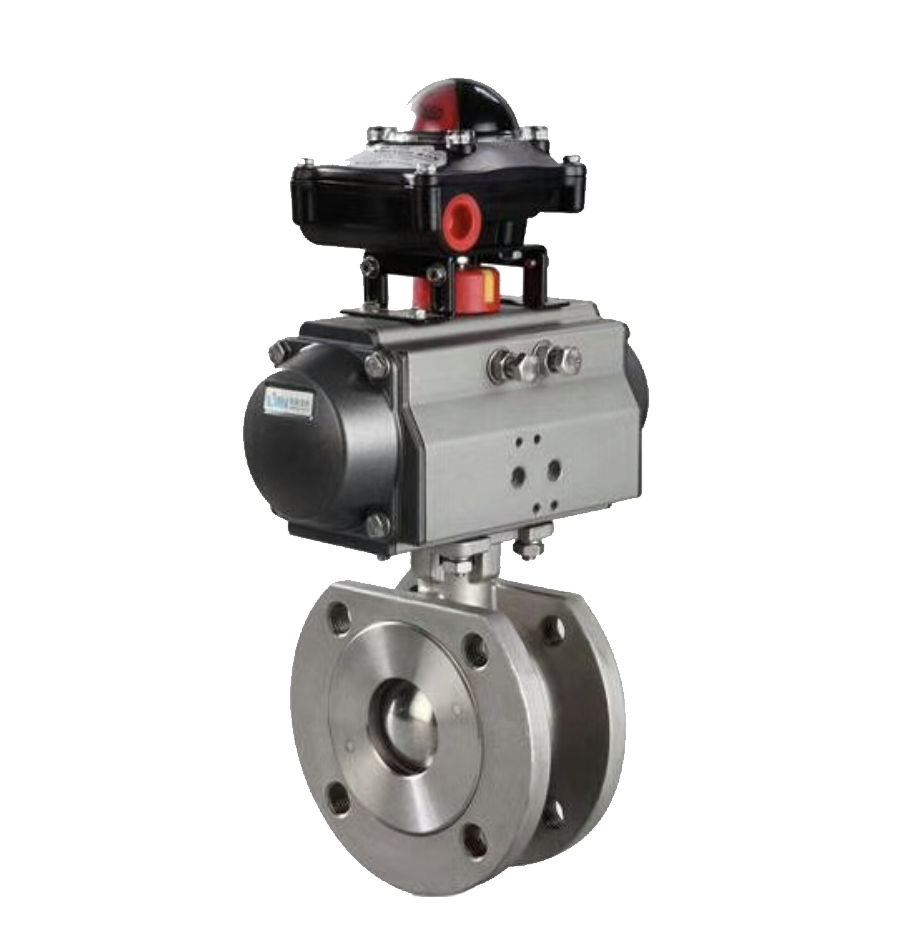

Q671F Pneumatic Wafer Ball Valve

Model：
Q671F-16C/Q671F-25C/Q671F-16P/Q671F-25P/Q671F-16R/Q671F-25R
Specification：
DN15-DN150
Pressure：
PN16,PN25
Material：
Carbon steel, stainless steel

Q671F Pneumatic Wafer Ball Valve OverviewThe Q671F pneumatic Wafer ball valve is an automated shut-off valve that uses a Wafer type connection and is driven by a pneumatic actuator. The valve body itself does not have a flange, and is directly Wafered between two pipe flanges with long bolts, making the structure extremely compact and lightweight. It drives the valve stem through a pneumatic actuator to rotate the ball 90 degrees, achieving rapid opening and closing. The valve seat usually uses soft sealing materials such as polytetrafluoroethylene (PTFE) to ensure reliable sealing. This valve is powered by compressed air and can be activated upon receiving control signals. It is particularly suitable for situations where space is limited, lightweight is required, and frequent automatic shut-off is required. It is widely used in chemical, pharmaceutical, food, environmental water treatment, and light industry automation production lines to remotely or programmatically control liquids, gases, and other media.Q671F Pneumatic Wafer Ball Valve Product Image

View detail>>

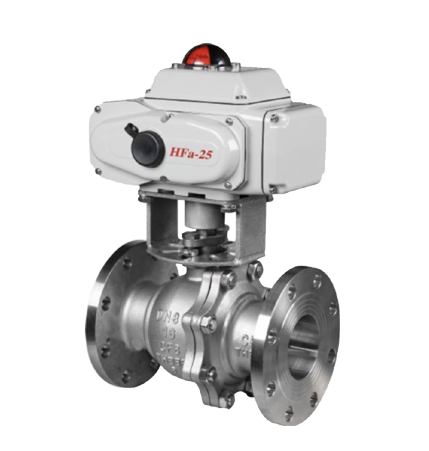

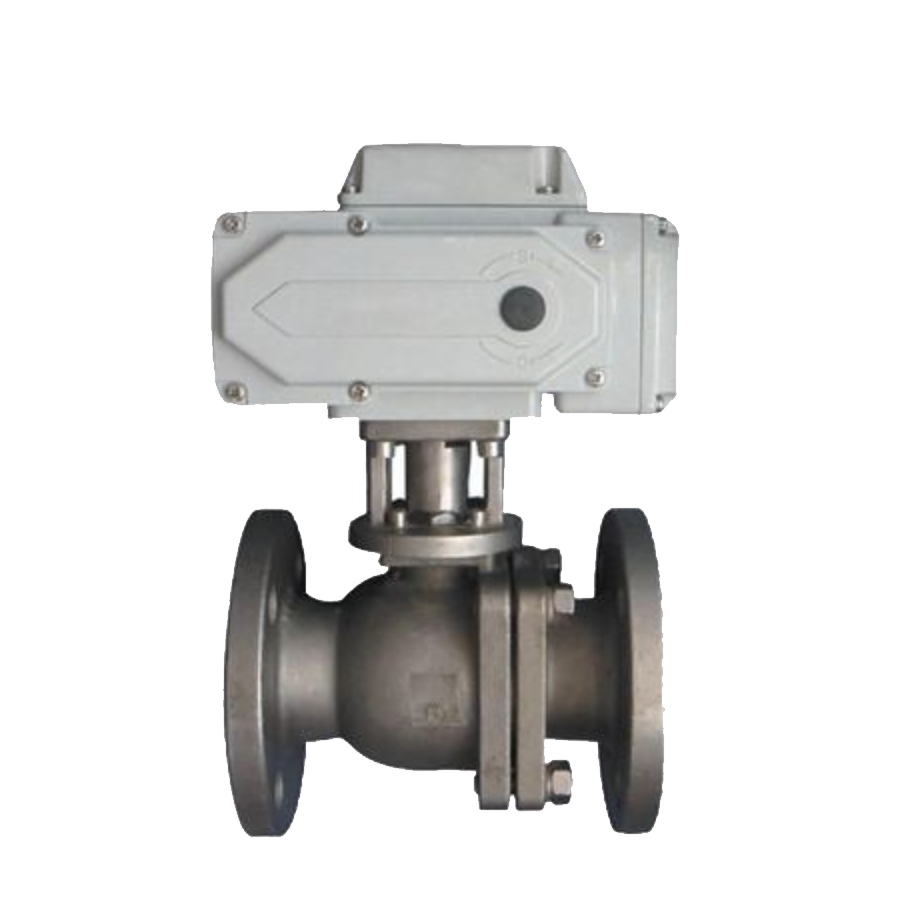

Q941F Electric Floating Ball Valve

Model：
Q941F-16P/Q941F-40P/Q941F-64P/Q941F-25P/Q941F-16R/Q941F-25R/Q941F-40R/Q941F-64R
Specification：
PN16,PN25,PN40,PN64
Pressure：
DN15-DN300
Material：
Carbon steel, stainless steel,alloy steel,Bronze

Q941F Electric Floating Ball Valve OverviewThe Q941F Electric Floating Ball Valve is a floating ball valve driven by an electric actuator, designed with flange connections. The valve body is typically made of cast steel, stainless steel, or cast iron, and its internal ball can produce a slight floating displacement under medium pressure, tightly pressing against the outlet seat to form a seal. The valve operates via an electric actuator that drives the valve stem to rotate the ball by 90 degrees, enabling quick opening/closing or proportional regulation. The sealing pair often utilizes soft materials such as PTFE (polytetrafluoroethylene) to ensure reliable sealing. Powered by electricity, the valve operates automatically upon receiving control signals. It is widely used in fluid pipeline systems across industries such as petroleum, chemical, power, water treatment, and building automation, enabling remote or automatic control of media such as water, steam, oil, and gases.Q941F Electric Floating Ball Valve Product Image

View detail>>
Q44F Three-way Ball Valve

Model：
Q44F-16C/Q44F-25C/Q44F-16P/Q44F-25P/Q44F-16R/Q44F-25R
Specification：
DN15-DN300
Pressure：
PN16,PN25
Material：
Carbon steel, stainless steel

Q44F Three-way Ball Valve OverviewQ44F three-way ball valve is a flow control valve with flange connection and three channels. By rotating the ball 90 or 180 degrees around the axis, it can achieve the diversion, merging or flow switching of the medium. The valve body is mainly made of cast steel or stainless steel, and its core component is a sphere with an L-shaped or T-shaped channel, which is sealed with elastic valve seats such as polytetrafluoroethylene (PTFE). This valve has a compact design and can flexibly change the flow path of the medium without the need to install multiple valves or change the pipeline layout. It is widely used in pipeline systems in industries such as petrochemicals, pharmaceuticals, food, and water treatment to meet complex process flow control requirements.Q44F Three-way Ball Valve Product Image

View detail>>

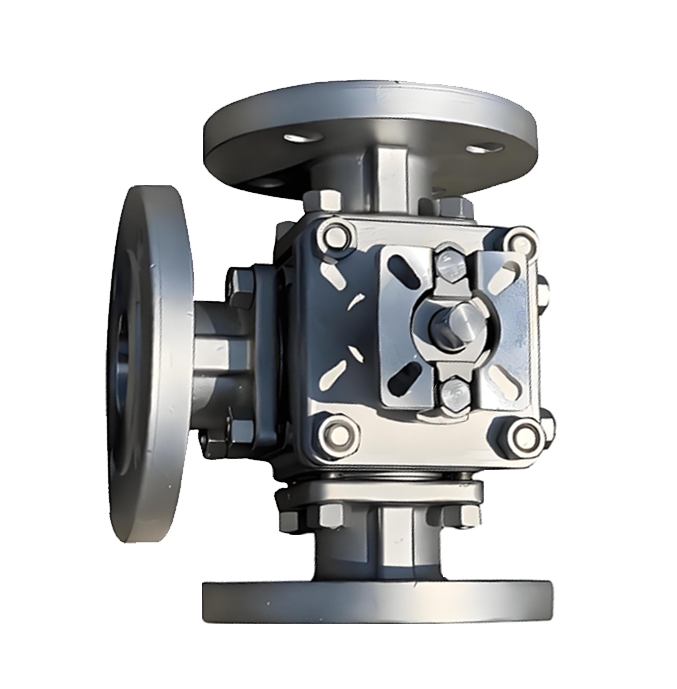

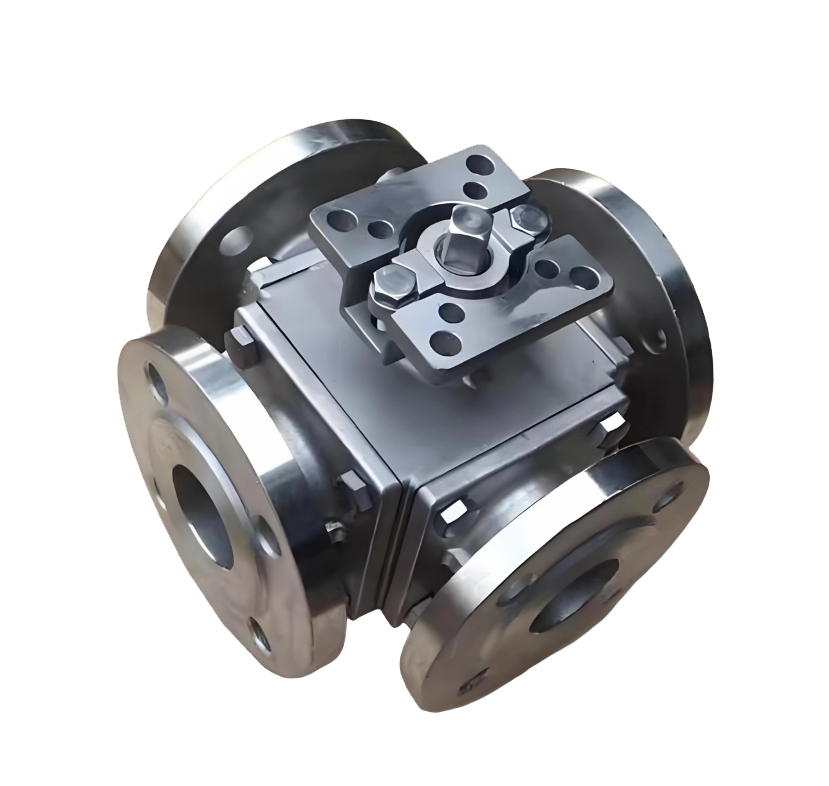

Q46H Four-way Ball Valve

Model：
Q46H-16C/Q46H-25C/Q46H-40C/Q46H-64C/Q46H-16P/Q46H-25P/Q46H-40P/Q46H-64P/Q46H-16R/Q46H-25R/Q46H-40R/Q46H-64R
Specification：
DN15-DN300
Pressure：
PN16,PN25,PN40,PN64
Material：
Carbon steel, stainless steel

Q46H Four-way Ball Valve OverviewQ46H four-way ball valve is a special structural valve that can achieve multi-directional switching of media and process conversion. Its valve body is equipped with four channels, and multiple flow paths are combined through the rotation of the internal sphere. This valve is usually connected by flanges, with a cast steel or stainless steel body and a specially designed internal spherical passage. The valve seat seal is made of metal hard seal or reinforced composite material. It can simultaneously change the connectivity status of multiple ports in one operation by rotating the handle 90 or 180 degrees. It is widely used in the petrochemical, pharmaceutical, power station, heat exchange, and process industries to complete complex control tasks such as medium crossover, process switching, or system bypass.Q46H Four-way Ball Valve Product Image

View detail>>
Q41F API Ball Valve

Model：
Q41F-Cl150P/Q41F-Cl300P/Q41F-Cl300P/Q41-Cl400P/Q41F-Cl150C/Q41F-Cl300C
Specification：
1/2"-8"
Pressure：
Class150LB,Class300LB,Class400LB
Material：
carbon Steel、stainless steel,Aluminum-nickel bronze

Q41F API Ball Valve OverviewQ41F API Ball Valve is a flange connected ball valve designed and manufactured in accordance with American standards such as ASME B16.34. It adopts a floating ball or fixed ball structure and can be quickly opened and closed by rotating the ball 90 degrees. Valve bodies are typically made of ASTM standard materials such as A216 WCB cast steel, CF8 stainless steel, etc., with pressure ratings ranging from Class 150 to Class 600. The valve adopts PTFE reinforced sealing or metal hard sealing to ensure reliable cut-off and connection control of water, steam, oil and corrosive media in medium and high pressure pipeline systems in industries such as petroleum, natural gas, chemical, and power.Q41F API Ball Valve Product Image

View detail>>

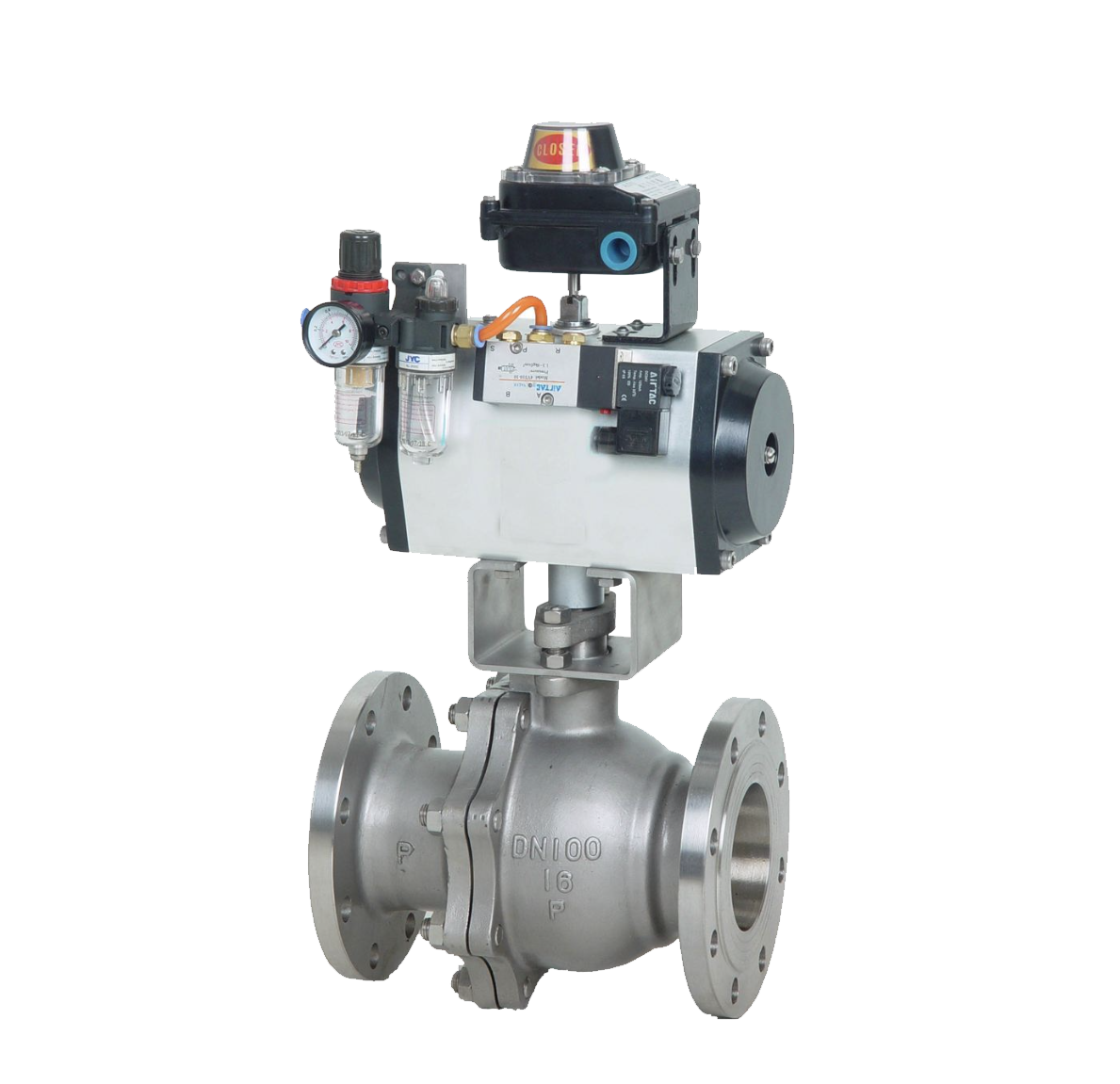

Q641F Pneumatic Flange Ball Valve

Model：
Q641F-16C/Q641F-25C/Q641F-40C
Specification：
DN20-DN200
Pressure：
PN16,PN25,PN40
Material：
Carbon steel,stainless steel,Bronze

Q641F Pneumatic Flange Ball Valve OverviewQ641F pneumatic flange ball valve is an automated control valve powered by compressed air, which is composed of a flange connected ball valve body and a pneumatic actuator. The valve is driven by an actuator to rotate the valve stem and the ball 90 degrees, achieving rapid opening and closing. The valve body is usually made of cast steel or stainless steel, and the sealing pair is mostly made of soft materials such as polytetrafluoroethylene (PTFE) to ensure reliable sealing. This valve can be activated by receiving pneumatic signals (usually 4-20mA or switch signals) from the control system, and is suitable for situations that require quick cut-off, remote control, or frequent operation. It is widely used in fluid pipeline systems of petroleum, chemical, power, light industry, and automation production lines to achieve automatic control of water, steam, oil products, and general corrosive media.Q641F Pneumatic Flange Ball Valve Product Image

View detail>>
Q941H Electric Metal Seated Ball Valve

Model：
Q941H-16P/Q941H-40P/Q941H-64P/Q941H-25P/Q941H-16R/Q941H-25R/Q941H-40R/Q941H-64R
Specification：
DN15-DN200
Pressure：
PN16,PN25,PN40,PN64
Material：
Carbon steel, stainless steel.Bronze

Q941H Electric Metal Seated Ball Valve OverviewQ941H Electric Metal Seated Ball Valve is a flange connected ball valve driven by an integrated electric actuator, usually with a metal hard seal structure. The valve body material is mostly cast steel or stainless steel, and its core sealing pair adopts a hard to hard or hard to soft pairing method with a spherical surface welded with hard alloy and a valve seat made of metal or reinforced composite material. The valve drives the motor by receiving control signals, and outputs torque through the deceleration mechanism to drive the ball to achieve 90 degree rotation opening and closing or proportional adjustment. This design focuses on harsh working conditions such as high temperature, high pressure, abrasive media, or frequent operation, and is widely used in industrial fields such as power plants, petrochemicals, coal chemicals, metallurgy, and steam systems. It is a key equipment that requires reliable cutting and regulation.Q941H Electric Metal Seated Ball Valve Product Image

View detail>>

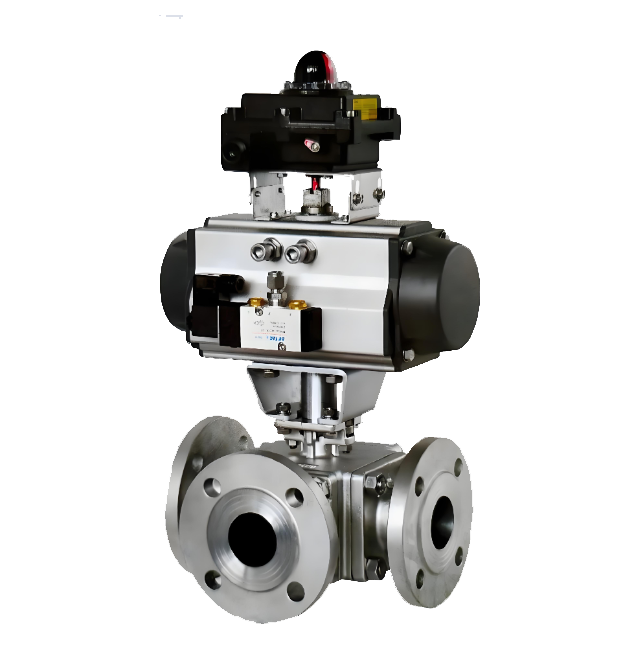

Q644F Pneumatic Three-Way Ball Valve

Model：
Q644F-16C/Q644F-25C/Q644F-16P/Q644F-25P/Q644F-16R/Q644F-25R
Specification：
DN15-DN300
Pressure：
PN16,PN25
Material：
carbon steel, stainless steel

Q644F Pneumatic Three-Way Ball Valve OverviewThe Q644F Pneumatic Three-Way Ball Valve is a three-channel flow-direction control valve, driven by a pneumatic actuator and featuring flanged connections. Its internal ball is designed with an L-shaped or T-shaped bore. Through 90-degree or 180-degree rotation of the ball actuated by the pneumatic actuator, it enables the diversion, mixing, or switching of the medium flow path.The valve body is typically made of cast steel or stainless steel, with the sealing pair often consisting of soft materials such as Polytetrafluoroethylene (PTFE). Powered by compressed air, this valve automatically executes rapid actuation upon receiving a control signal. It is suitable for applications requiring frequent, remote flow-path changes, such as in petrochemical, pharmaceutical, food & beverage, water treatment industries, and automated production lines, providing flexible and reliable control over the flow direction of liquids, gases, and other media.Q644F Pneumatic Three-Way Ball Valve Product Image

View detail>>

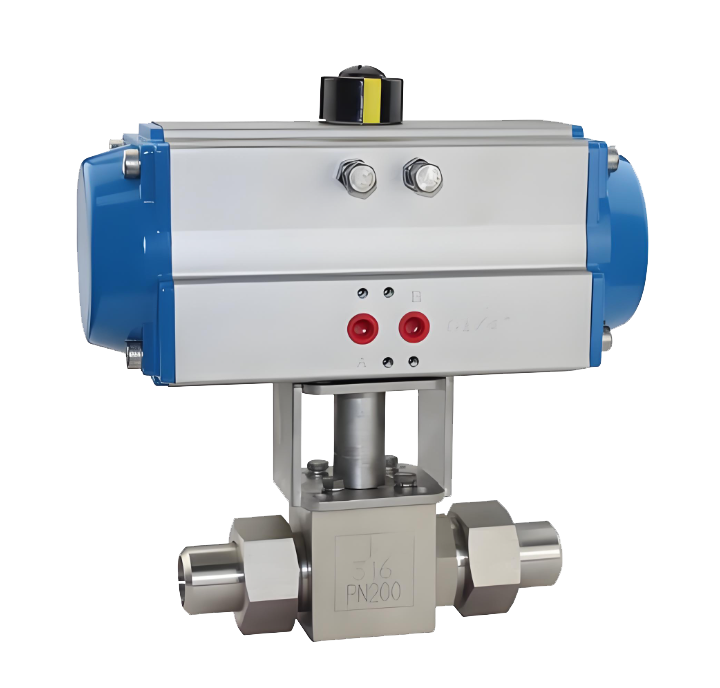

Q21Y Pneumatic High-Pressure Ball Valve

Model：
Q21Y-16P/Q21Y-25P/Q21Y-40P/Q21Y-64P
Specification：
DN10-DN25
Pressure：
PN16,PN25,PN40,PN64
Material：
stainless steel,carbon steel,forged stainless steel

Q21Y Pneumatic High-Pressure Ball Valve Overview The Q21Y Pneumatic High-Pressure Ball Valve is a high-pressure specialized ball valve driven by a pneumatic actuator, designed to meet the requirements of high-pressure working conditions. The valve body is made of forged steel or stainless steel, and features a metal hard-seal or reinforced sealing structure internally. The pneumatic actuator drives the stem to rotate the ball 90 degrees for rapid opening and closing. This valve is specifically designed for high-pressure gases, liquids, and corrosive media, with a working pressure of up to PN160 or higher. It is suitable for applications in petrochemicals, natural gas, high-pressure filling systems, and industrial automation, serving as key equipment for achieving rapid, reliable shut-off and automated control in high-pressure pipelines.Q21Y Pneumatic High-Pressure Ball Valve Product Image

View detail>>

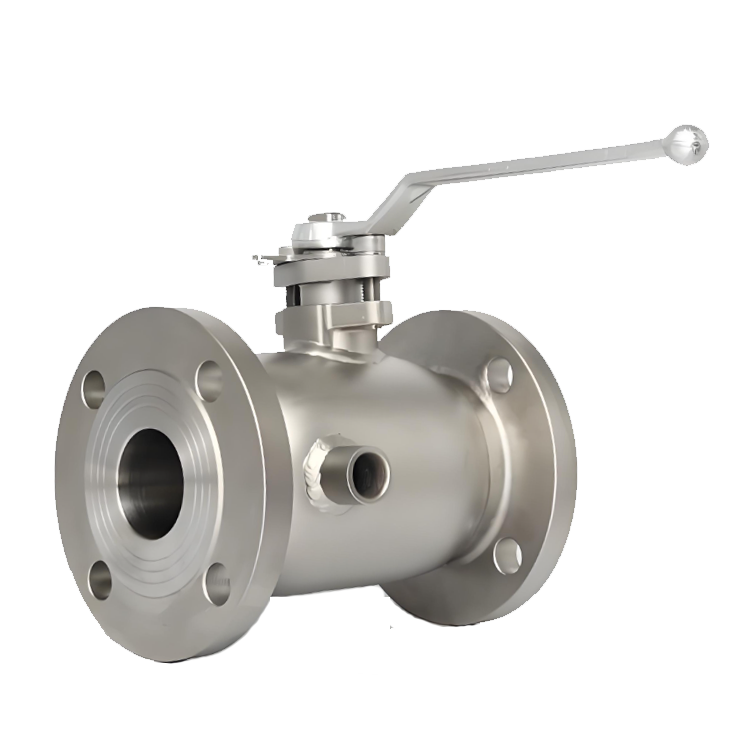

BQ41F Jacket Ball Valve

Model：
BQ41F-25P/BQ41F-25R/BQ41F-16R/BQ41F-25P
Specification：
DN15-DN150
Pressure：
PN16,PN25
Material：
stainless steel,carbon steel

BQ41F Jacket Ball Valve OverviewThe BQ41F Jacket Ball Valve is a specialized valve that integrates an insulation jacket on the exterior of a standard flanged ball valve. It is primarily used in pipeline systems requiring temperature maintenance or prevention of media solidification. The valve body is made of cast steel or stainless steel and features an integrated or welded jacket layer, allowing circulating heating media (such as steam, hot water, or thermal oil) within the jacket to continuously heat or insulate the valve body and internal passages.The valve operates by rotating the ball 90 degrees to open or close, and the sealing pair typically utilizes temperature-resistant PTFE or enhanced materials. This valve is specifically designed for industries such as petrochemicals, asphalt, oil and fat processing, food, and pharmaceuticals, where it is used to transport high-viscosity, crystallization-prone, or flow‑maintaining media, ensuring continuity and stability in process flows.BQ41F Jacket Ball Valve Product Image

View detail>>
Q41Y 3PCS Forged Steel Ball Valve

Model：
Q41Y-16C/Q41Y-40C/Q41Y-64C/Q41Y-100P/Q41Y-16P/40P/64P
Specification：
DN15-DN200
Pressure：
PN16,PN40,PN100，PN64
Material：
forged steel, forged stainless steel

Q41Y 3PCS Forged Steel Ball Valve OverviewQ41Y three piece forged steel ball valve is a high-pressure resistant ball valve composed of a forged steel valve body and three bolted connections. The valve body and components are usually made of forged steel materials such as A105, F304/F316, which obtain a dense structure through forging processes and have higher mechanical strength and pressure bearing capacity. The core seal adopts a three-dimensional hard sealing structure with spherical surface welding or spraying hard alloy (such as Stellite alloy), and the valve seat is made of metal or reinforced graphite, which can maintain sealing stability under high temperature, high pressure and frequent operation. This valve is designed to comply with high standard specifications such as API and ASME, with a nominal pressure of up to Class 1500. It is widely used in key pipelines such as petrochemicals, oil and gas extraction, power plants, and refining, and is suitable for reliable cutoff of harsh working conditions such as water, steam, oil products, and natural gas.Q41Y 3PCS Forged Steel Ball Valve Product Image

View detail>>
Q41F American Standard Floating Ball Valve

Model：
Q41F-Cl150P/Q41F-Cl150/Q41F-Cl300P/Q41F-Cl150C/Q41F-Cl300C/Q41F-Cl300C
Specification：
1/2"-20"
Pressure：
Class150LB,Class300LB
Material：
cast steel, stainless steel

Q41F American Standard Floating Ball Valve OverviewThe Q41F American Standard Floating Ball Valve is a flanged floating ball valve strictly designed and manufactured in accordance with American standards such as API and ASME, featuring standard American flange connections (e.g., RF/RTJ). The valve body is typically made of materials like WCB cast steel or CF8 stainless steel. The ball within the valve floats slightly under medium pressure, pressing tightly against the outlet seat to achieve a self-sealing effect. The valve is operated by rotating the stem 90 degrees to open or close, with sealing pairs commonly made of soft materials like PTFE or hard metal seals. This valve meets pressure class requirements ranging from Class 150 to Class 600 and is suitable for various pipeline systems in industries such as petroleum, chemical, natural gas, and power. It serves as a versatile and reliable shut-off device within the American standard system.Q41F American Standard Floating Ball Valve Product Image

View detail>>
Q41F Manual Ball Valve

Model：
Q41F-16P/Q41F-16R/Q41F-25P/Q41F-40P/Q41F-64P/Q41F-25R/Q41F-40R/Q41F-64R
Specification：
DN15-DN250
Pressure：
PN16-64
Material：
stainless steel、cast steel, Bronze

Q41F Manual Ball Valve Overview The Q41F Manual Ball Valve is a versatile industrial ball valve with flange connections, designed for manual operation to open or close the flow. The valve body is typically made of cast steel, stainless steel, or cast iron. A 90-degree rotation of the handle drives the stem to actuate the ball, enabling rapid shut-off or flow restoration. The seat utilizes soft sealing materials such as PTFE to ensure reliable sealing. With a simple structure and intuitive operation, this valve is suitable for media including water, steam, oil, and non-corrosive fluids, with a typical working pressure range of PN16 to PN40. It is widely used in petroleum and chemical industries, power generation, water supply and drainage systems, and general industrial pipelines.Q41F Manual Ball Valve Product Image

View detail>>

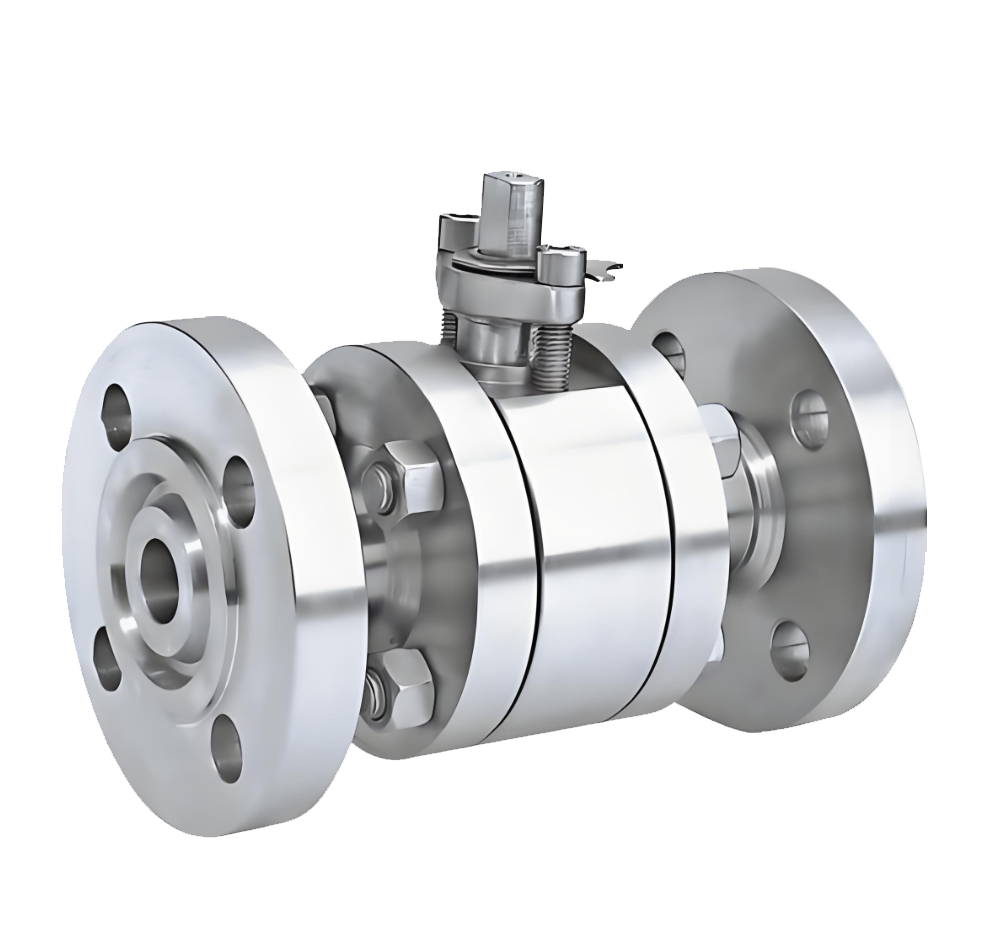

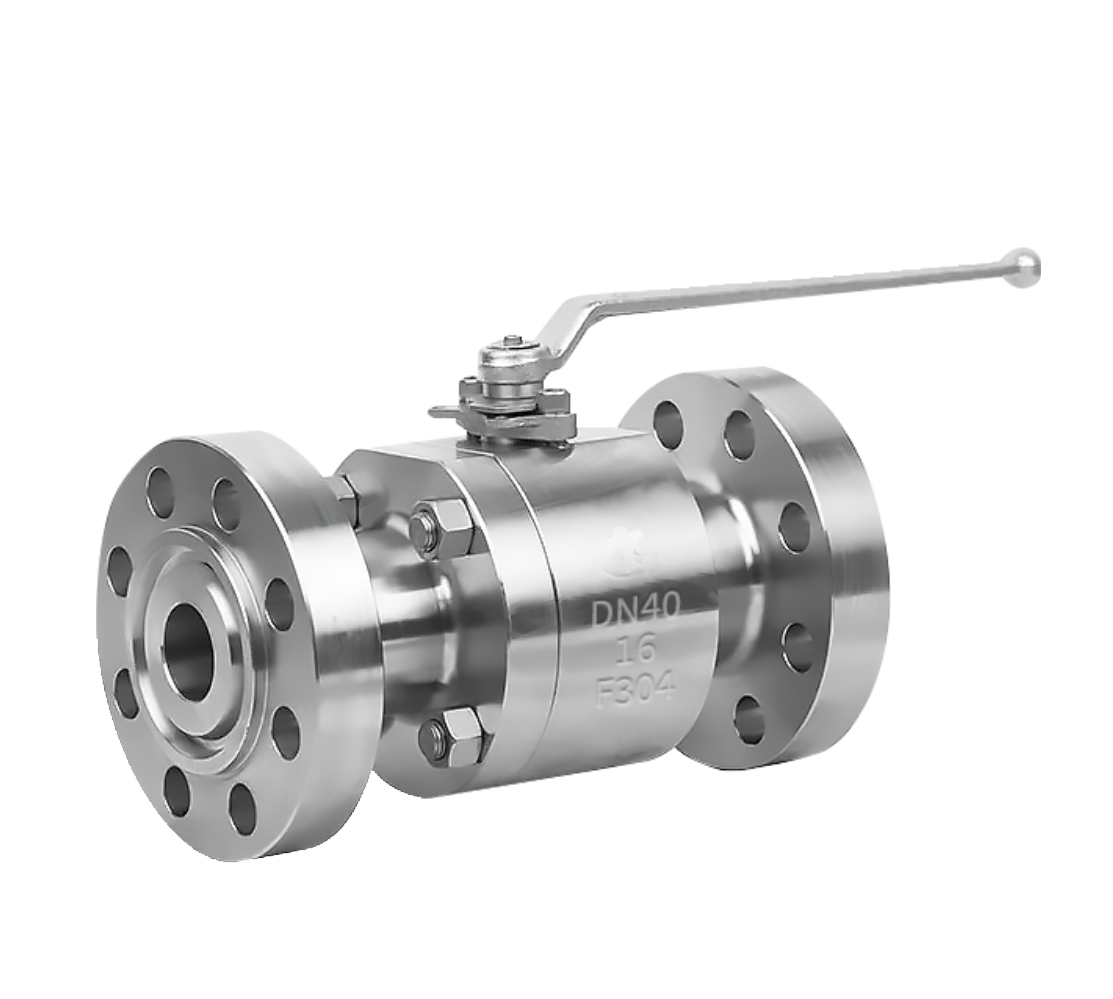

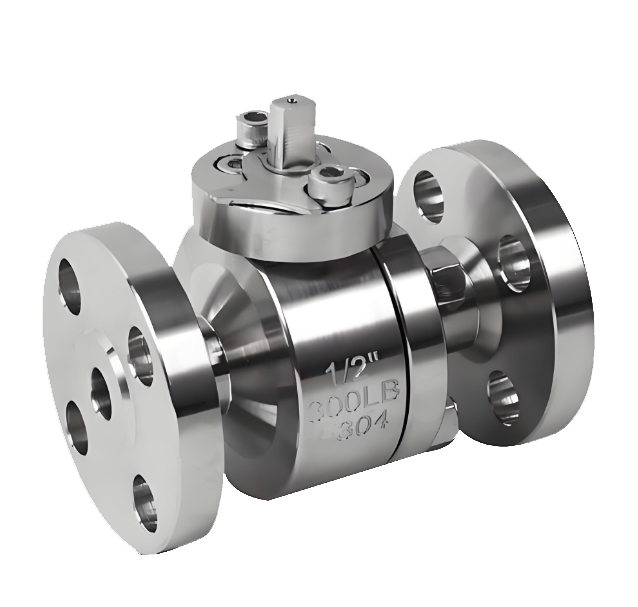

Q41H Forged Steel Flanged Ball Valve

Model：
Q41H-25P/Q41H-40P/Q41H-25C/Q41H-40C
Specification：
DN15-DN200
Pressure：
PN25,PN40
Material：
forged steel, forged stainless steel

Q41H Forged Steel Flanged Ball Valve OverviewThe Q41H Forged Steel Flanged Ball Valve is a specialized high-pressure and high-temperature ball valve featuring a forged valve body and flanged connections. The valve body is forged from materials such as A105, providing exceptional mechanical strength and pressure-bearing capacity. The valve employs a metal hard-seal structure, where a precisely machined ball is rotated 90 degrees by the stem to achieve opening and closing. This design maintains reliable sealing under conditions of high pressure differential and elevated temperatures. Compliant with industrial high-pressure standards, this valve is suitable for high-pressure pipeline systems in sectors such as petroleum, chemical, power generation, and natural gas. It serves as critical equipment for reliable shut-off in demanding operating conditions.Q41H Forged Steel Flanged Ball Valve

View detail>>
Q41H Forged Steel Three-Piece Ball Valve

Model：
Q41H-25P/Q41H-40P/Q41H-25C/Q41H-40C/Q41H-25R/Q41H-40R
Specification：
DN15-DN200
Pressure：
PN25,PN40
Material：
forged steel, forged stainless steel

Q41H Forged Steel Three-Piece Ball Valve Overview The Q41H Forged Steel Three-Piece Ball Valve is a high-performance industrial ball valve featuring an integrally forged steel body and a three-piece bolted connection structure. The valve body is composed of high-strength forged steel segments (e.g., A105), joined together by alloy steel bolts, with an internally designed metal hard-seal system. The valve operates via a 90-degree rotation of the stem, which drives the precision-machined ball to open or close. It is specifically engineered for high-pressure, high-temperature, and demanding media conditions. The modular three-piece structure facilitates disassembly and maintenance, making it widely applicable in critical systems such as petrochemicals, natural gas, power plants, and high-pressure pipelines. This valve serves as a premium equipment solution for reliable shut-off and in-line maintenance capabilities.Q41H Forged Steel Three-Piece Ball Valve Product Image

View detail>>

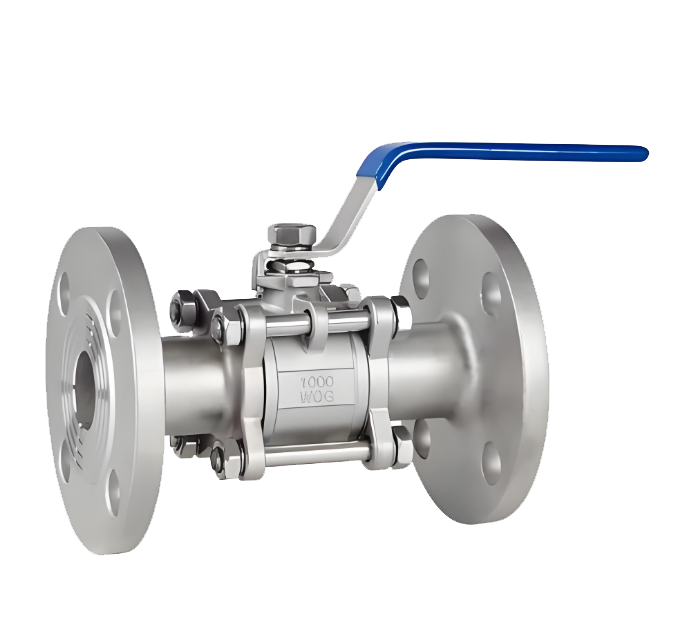

Q41F Flange Three-Piece Ball Valve

Model：
Q41F-16P/Q41F-25P/Q41F-40P/Q41F-64P/Q41F-16C/Q41F-25C/Q41F-40C/Q41F-64C
Specification：
DN15-DN100
Pressure：
1.6Mpa-6.4Mpa
Material：
stainless steel

Q41F Flange Three-Piece Ball Valve Overview The Q41F Flange Three-Piece Ball Valve is a versatile industrial ball valve featuring a three-piece split-body design with flange connections. The valve body typically consists of two end flanges and a central body section joined by high-strength bolts, and is made from materials such as cast steel, stainless steel, or cast iron. The valve operates by rotating the stem to drive the ball for rapid 90-degree opening and closing. The seat employs soft sealing materials like PTFE to ensure reliable sealing. With a robust structure that facilitates easy disassembly and maintenance, this valve is suitable for media such as water, steam, oil, and non-corrosive fluids, with a typical working pressure range of PN16 to PN40. It is widely used in petroleum and chemical industries, power generation, water supply and drainage systems, and general industrial pipelines.Q41F Flange Three-Piece Ball Valve Product Image

View detail>>

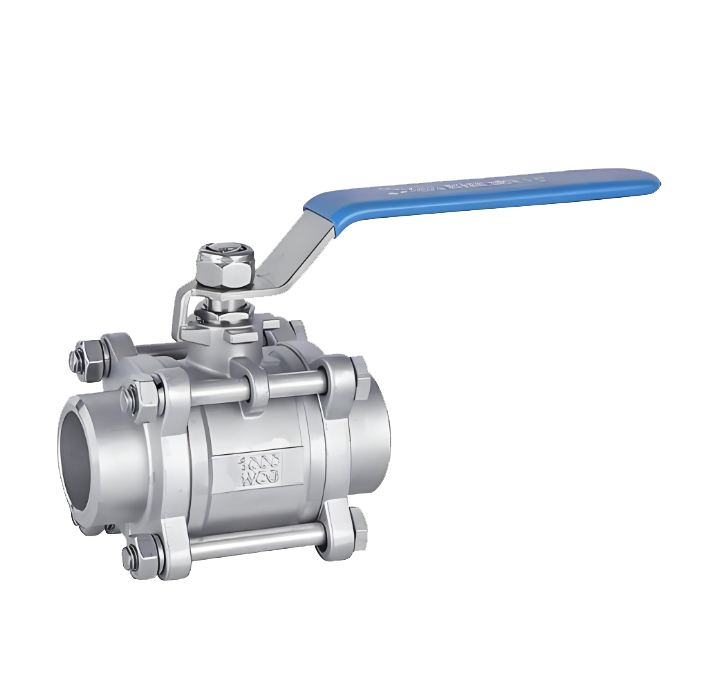

Q61F Butt-Weld Three-Piece Ball Valve

Model：
Q61F-16C/Q61F-25C/Q61F-40C/Q61F-64C/Q61F-16R/Q61F-25R/Q61F-40R/Q61F-64R/Q61F-16P/Q61F-25P/Q61F-40P/Q61F-64P
Specification：
1/4"- 4"
Pressure：
1.6-6.4Mpa
Material：
stainless steel

Q61F Butt-Weld Three-Piece Ball Valve OverviewThe Q61F Butt-Weld Three-Piece Ball Valve is a high-performance, compact ball valve featuring an integrally forged steel body, butt-weld ends, and a three-piece bolted construction. The valve body, forged from materials such as A105 steel, consists of three sections securely joined by high-strength bolts, with butt-weld ends for permanent, integral connection to high-pressure pipelines. Operation involves a 90-degree rotation of the valve stem to actuate the ball for rapid opening or closing. The sealing assembly utilizes soft materials like PTFE or optional metal hard seats to ensure tight shutoff.This design combines high-pressure integrity, zero-leakage welded connections, and easy in-line maintenance. It is specifically engineered for demanding high-pressure, small-bore applications in confined spaces requiring high reliability, such as in petrochemical plants, power stations, and high-pressure pipeline systems.Q61F Butt-Weld Three-Piece Ball Valve Product Image

View detail>>

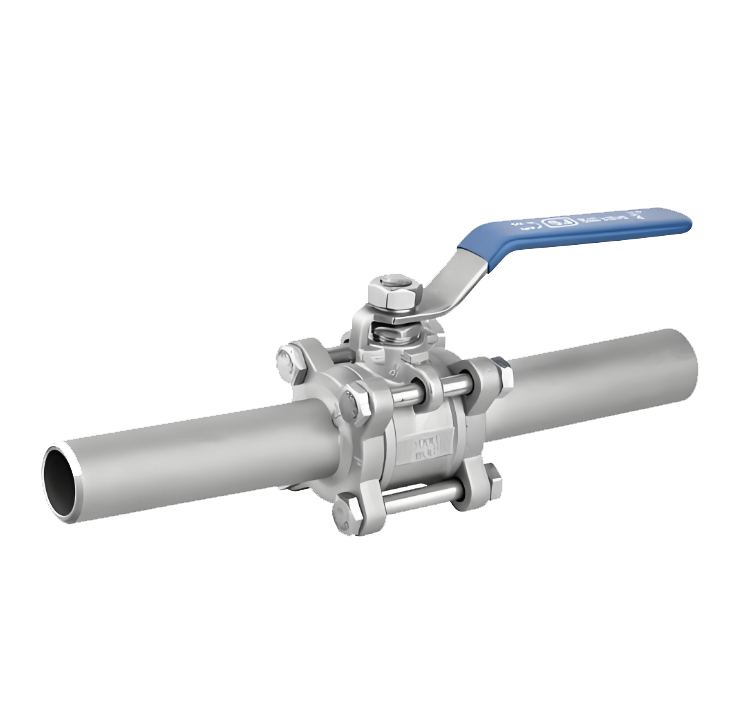

Q61F Extended Butt-Weld Three-Piece Ball Valve

Model：
Q61F-16P/Q61F-16R
Specification：
DN15-DN100
Pressure：
PN16
Material：
stainless steel

Q61F Extended Butt-Weld Three-Piece Ball Valve OverviewThe Q61F Extended Butt-Weld Three-Piece Ball Valve is a specialized ball valve featuring an extended neck design, butt-weld ends, and a three-piece bolted construction. The valve body is forged from steel and consists of three sections connected by bolts, with a notably extended bonnet section and butt-weld ends at both sides. The valve is operated via an extended stem, which drives the ball through a 90-degree rotation for opening and closing, utilizing sealing pairs made of PTFE or metal materials.This design is specifically engineered for demanding applications that require isolation of the valve cavity from heat, prevention of packing freeze-up, or ease of operation outside insulation or cryogenic layers. It is widely used in pipeline systems handling liquefied gases, high-temperature media, cryogenic fluids, and in petrochemical and energy industries where external insulation or heat tracing is necessary.Q61F Extended Butt-Weld Three-Piece Ball Valve Product Image

View detail>>

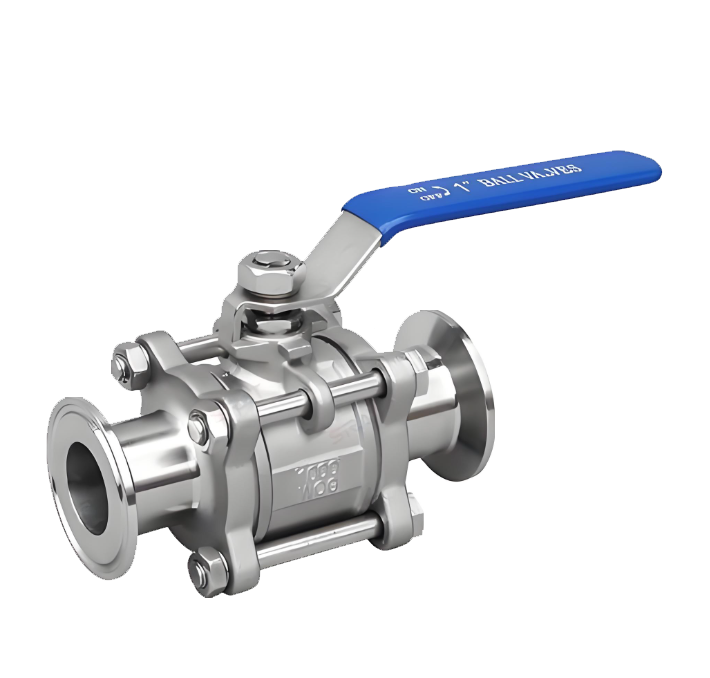

Q81F Clamp (Quick-Connect) Three-Piece Ball Valve

Model：
Q81F-16P/Q81F-25P/Q81F-40P/Q81F-64P/Q81F-16R/Q81F-25R/Q81F-40R/Q81F-64R
Specification：
1/2”-4”
Pressure：
1.6-6.4Mpa
Material：
stainless steel

Q81F Clamp (Quick-Connect) Three-Piece Ball Valve OverviewThe Q81F Clamp (Quick-Connect) Three-Piece Ball Valve is a specialized ball valve featuring sanitary clamp (quick-connect) ends and a three-piece body construction. The valve body is typically made of 304/316 stainless steel, with surfaces precision-polished to sanitary standards. Both ends are equipped with standard sanitary clamp fittings, enabling rapid installation and disconnection from the pipeline. Internally, the three-piece bolted design allows for complete disassembly for thorough cleaning. The ball and seat seals utilize sanitary-grade materials such as PTFE. This valve is specifically engineered for processes requiring frequent cleaning, sterilization, and contamination prevention, making it widely used in sanitary fluid handling systems across industries such as food and beverage, pharmaceuticals, biotechnology, and cosmetics.Q81F Clamp (Quick-Connect) Three-Piece Ball Valve Product Image

View detail>>

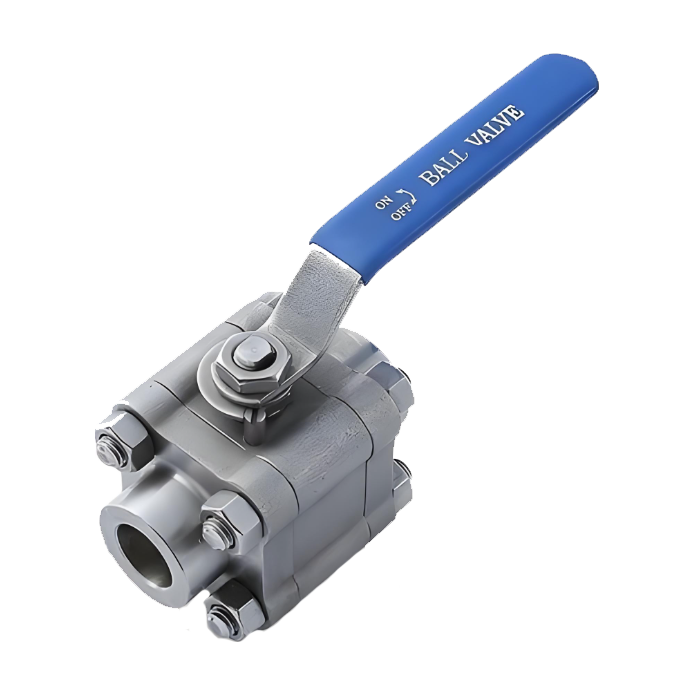

Q61F Forged Steel Three-Piece Ball Valve

Model：
Q61F-16P/Q61F-25P/Q61F-40P/Q61F-64P/Q61F-16C/Q61F-25C/Q61F-40C/Q61F-64C/Q61F-16R/Q61F-25R/Q61F-40R/Q61F-64R
Specification：
1/4”-4”
Pressure：
1.0-6.4Mpa
Material：
forged steel, forged stainless steel

Q61F Forged Steel Three-Piece Ball Valve OverviewThe Q61F Forged Steel Three-Piece Ball Valve is a high-performance compact ball valve featuring a forged steel body with internal thread or butt weld connections. Its body consists of three segments connected by high-strength bolts. The valve is precision-machined from forged steel materials (e.g., A105), and the ball is rotated 90 degrees via the stem for quick opening and closing. The sealing pair utilizes soft materials such as PTFE or a metal hard-seal configuration. This design combines high-pressure capability with a compact installation footprint, making it specifically suitable for applications in petrochemicals, power plants, high-pressure instrumentation, and piping systems with limited space. It is an ideal choice for reliable shut-off in small-bore, high-pressure operating conditions.Q61F Forged Steel Three-Piece Ball Valve Product Image

View detail>>

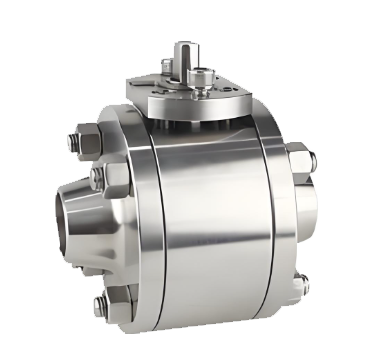

Q61Y Forged Steel Three-Piece Ball Valve

Model：
Q61Y-160C/Q61Y-320C
Specification：
DN10-DN100
Pressure：
PN160,PN320
Material：
forged steel,forged stainless steel

Q61Y Forged Steel Three-Piece Ball Valve OverviewThe Q61Y Forged Steel Three-Piece Ball Valve is a high-performance hard-seal ball valve featuring a forged steel body and a three-piece bolted construction. The valve body is forged from high-strength materials such as A105 steel in three sections, which are securely assembled using alloy steel bolts. The sealing surfaces of the ball and seats employ hard-metal overlay welding, forming a durable metal-to-metal seal. The valve achieves reliable 90-degree opening and closing through the rotation of the stem, which drives a fixed ball design.This valve is specifically engineered for demanding applications involving high pressure, high temperatures, and abrasive or corrosive media. It combines the high pressure-bearing capability of forged steel, the easy maintenance enabled by the three-piece structure, and the durability of hard-sealed surfaces. It is widely used in critical high-pressure, small-bore pipelines across industries such as petrochemicals, natural gas, power generation, and other vital industrial facilities.Q61Y Forged Steel Three-Piece Ball Valve

View detail>>

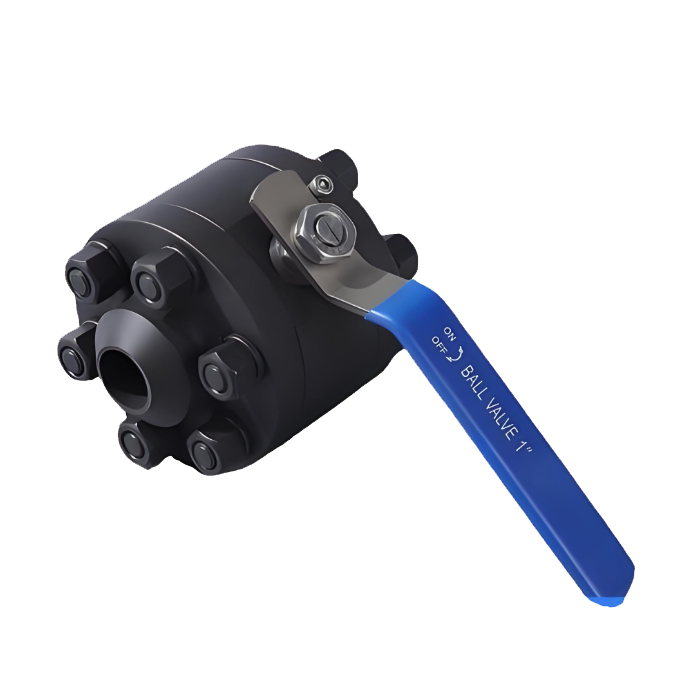

Q61N Forged Steel Butt-Weld Ball Valve

Model：
Q61N-160P/Q61N-320P
Specification：
DN10-DN100
Pressure：
PN160,PN320
Material：
forged steel,forged stainless steel

Q61N Forged Steel Butt-Weld Ball Valve OverviewThe Q61N Forged Steel Butt-Weld Ball Valve is a high-performance, permanently sealed ball valve featuring an integrally forged steel body and butt-weld ends. The valve body is forged from materials such as A105 steel, with both ends designed for direct butt-welding to the pipeline, creating an integral connection that completely eliminates leakage risks associated with flanged joints. Utilizing a fixed-ball or floating-ball design, the valve typically incorporates metal hard seats or high-performance soft seats, achieving reliable 90-degree on/off operation through stem-driven rotation of the ball.This valve is specifically engineered for demanding service conditions involving high temperatures, high pressures, toxic fluids, or flammable and explosive media. It is widely used in critical applications across petrochemical plants, long-distance natural gas pipelines, power stations, and key process systems, serving as the essential isolation device for pipeline segments requiring absolute sealing integrity and operational safety.Q61N Forged Steel Butt-Weld Ball Valve Product Image

View detail>>
